1. Shaft Driven Bicycle
A shaft-driven bicycle is a bicycle that uses a drive shaft instead of a chain to transmit power from the pedals to the wheel.Shaft-driven bikes have a large bevel gear where a conventional bike would have its chain ring. This meshes with another bevel gear mounted on the drive shaft.
The use of bevel gears allows the axis of the drive torque from the pedals to be turned through 90 degrees. The drive shaft then has another bevel gear near the rear wheel hub which meshes with a bevel gear on the hub where the rear sprocket would be on a conventional bike, and canceling out the first drive torque change of axis.

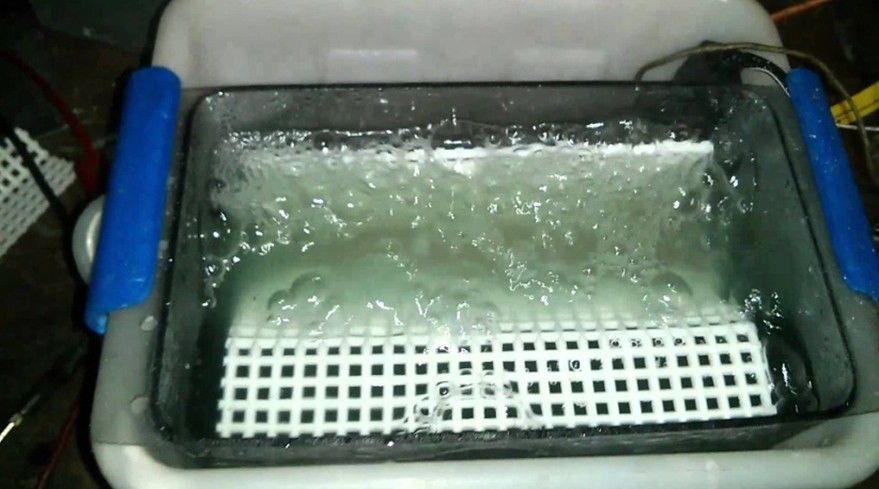

2. Portable Eaching Machine Design
A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate. PCBs can be single sided (one copper layer), double sided (two copper layers) or multi-layer. This process is carried out manually in lab ususally .This portable low cost etching machihne will easily make this etching operation.Mean while a person can do another act.
3. Pick And Place Robot
Robotic pick and place automation speeds up the process of picking parts up and placing them in new locations, increasing production rates.With many end-of-arm-tooling options available, pick and place robots can be customized to fit specific production requirements. Moving large, small, heavy, or hard-to-handle products can be an easy task to automate in the factory line.Consistency is also a benefit of using a pick and place system. The robots can be easily programmed and tooled to provide multiple applications if required.An increase in output with a pick and place robot system offer long-term savings to companies. With the advancements in technology and affordability of robots, more pick and place robotic cells are being installed for automation applications.(Design Changes As Per Product Size & Weight Pick & Place)

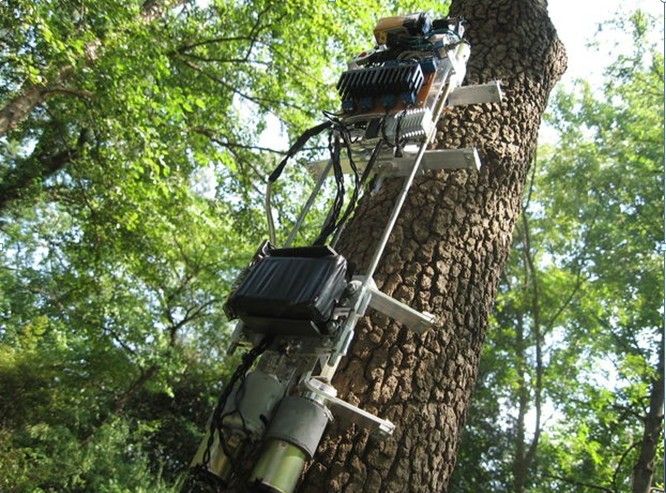

4. Tree Climbing Robot
Tree Climbing Robot comprises of two mechanisms namely a climbing mechanism and a harvesting mechanism. The climbing mechanism consists of a octagon shaped chassis. Four active wheels are set at specific intervals around the tree of which one pair is for the upper side and the other for the lower side of the chassis. The main features of the climbing mechanism and the innovative climbing strategy fusing the straight and spiral climbs. The harvesting mechanism consists of an arm with three degree of freedom with a circular saw as an end effectors. The bunch of nuts is located by a vision sensor (camera) which is placed at the wrist of the arm. The nuts are harvested using the saw based on the output received from the camera. The entire movement of the Tree Climbing Robot and the harvesting mechanism is controlled using remote controller.
5. Mobile Car Shelter
Mobile Car Shelter is a covered structure used to offer limited protection to vehicles, primarily cars, from the elements. The structure can either be free standing or attached to a wall. Unlike most structures a carport does not have four walls, and usually has one or two. Mobile Car Shelter offer less protection than garages but allow for more ventilation.
6. Omni Wheelchair
This Omni-directional wheelchair was designed for the less abled elderly to move more flexibly in narrow spaces, such as elevators or small aisle. It does not only keep the merit of the existing manual and electrical operated wheelchair, but also with a novel Omni-directional mobility system. Elderly people can easily operate such device in most environments. We carried on improvements for design, mechanical and control system of this electrically operated wheelchair, and the development of smart automatic charge system

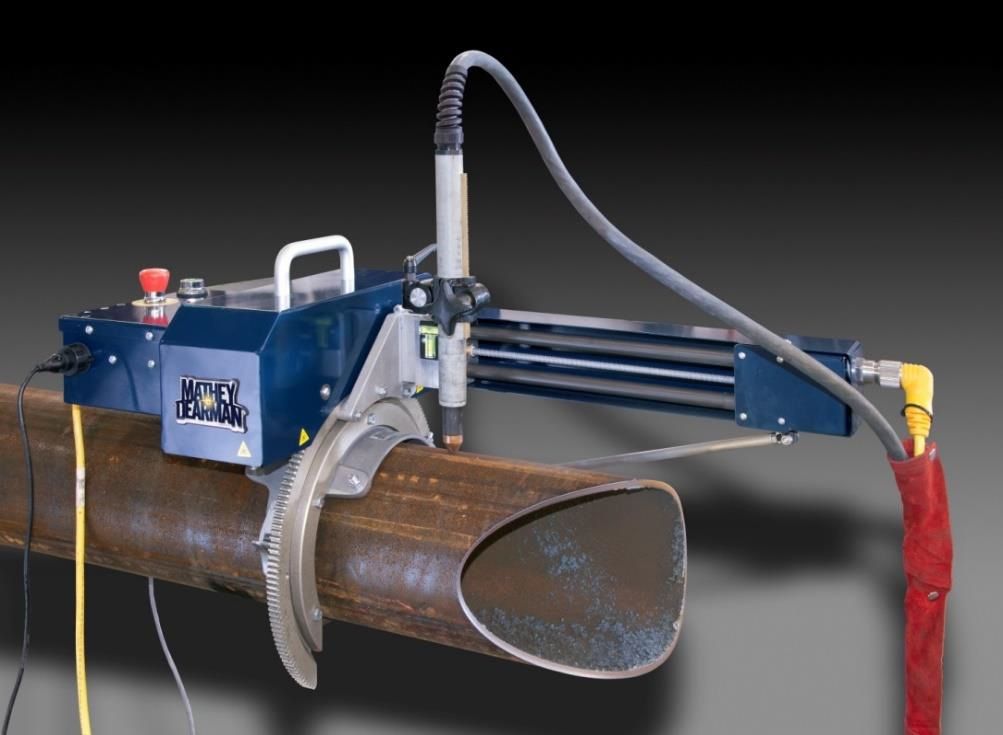

7. CNC Pipe cutting machine

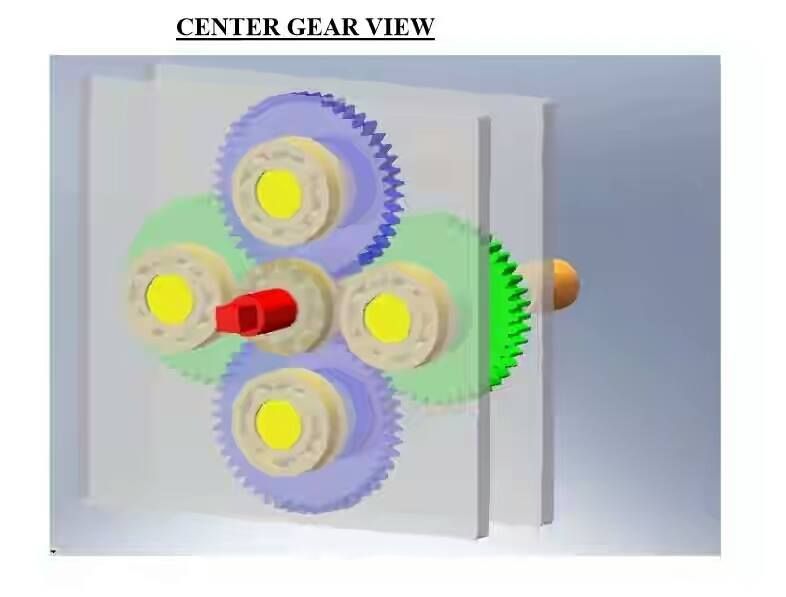

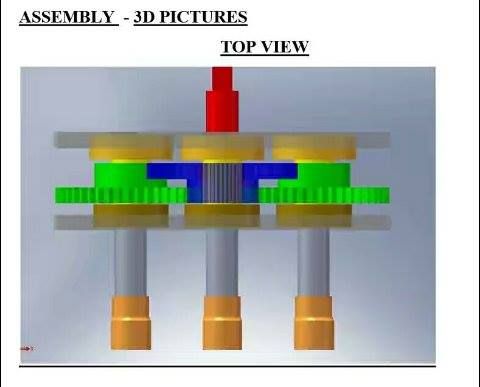

8) MultiPoint Nut Remover
Spanner tool
system is am improve and advance technology that has brought about revolution
in the automobile industry. Today all the automobile companies using it their
unique selling point. The primary function of the spanner tools system is a
maximum use in automobile industries as make of different type of vehicle. The
function of spanner can summed up “a to provide most effective spanner tools
system”
Our project is result of intense
research and study of the various spanner tools, it consist of a working model
that the demonstrates the whole concept of the working of spanner tool system
in automobile. The project includes designing. Manufacturing and analysis of
spanner tools system.
The peculiarity about our project is
that, we have tried to implement spanner in simple mechanical system and the
thus we have made an attempt to demonstrate the concept of spanner tools system
in the simplest manner possible.
SERVICES PROVIDED BY EP:
(1) Design Guidence.
(2) 3D CAD model design
(3) Design calculation guidence
(4) Detail Part drawings
(5) Manufacturing Guidence
(6) Parts for Manufacturing (for produce actual model)
(7) Full Project Report guidence
(8) PPT guidence.
